Ford
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
| 13 INCH SINGLE 1 | |||||
|---|---|---|---|---|---|
 |

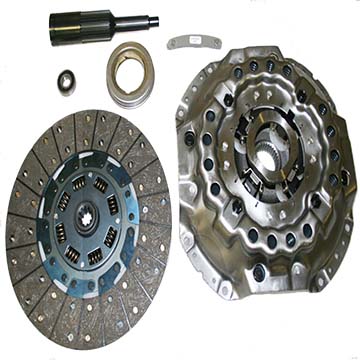

Clutch Kit Part #: FC563ACN KIT Reference #: 1112-6163 Includes: 6203-2RS, AG 03, F1815816 KIT (.060), FC563AC, FE350BA/380, N1174 | ||||
 |

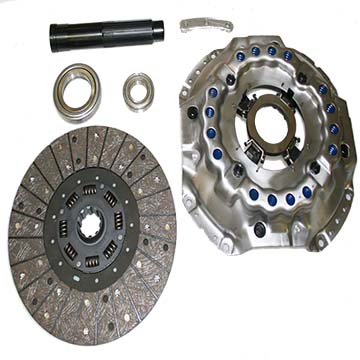

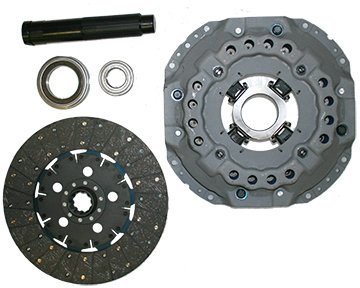

Clutch Kit Part #: FD863ABN-10-R KIT Includes: 836108, AG 13, FD863AB, FD951AB/395, N1585 | ||||
 |
Clutch Kit Part #: FD863ABN-10 KIT Includes: 836108, AG 13, FD863AB, FD950AB/395, N1585 | ||||
 |

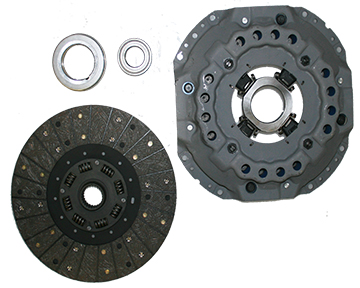

Clutch Kit Part #: FD863ABN-25 KIT Includes: 836108, FD251A, FD863AB, N1174 | ||||
 |

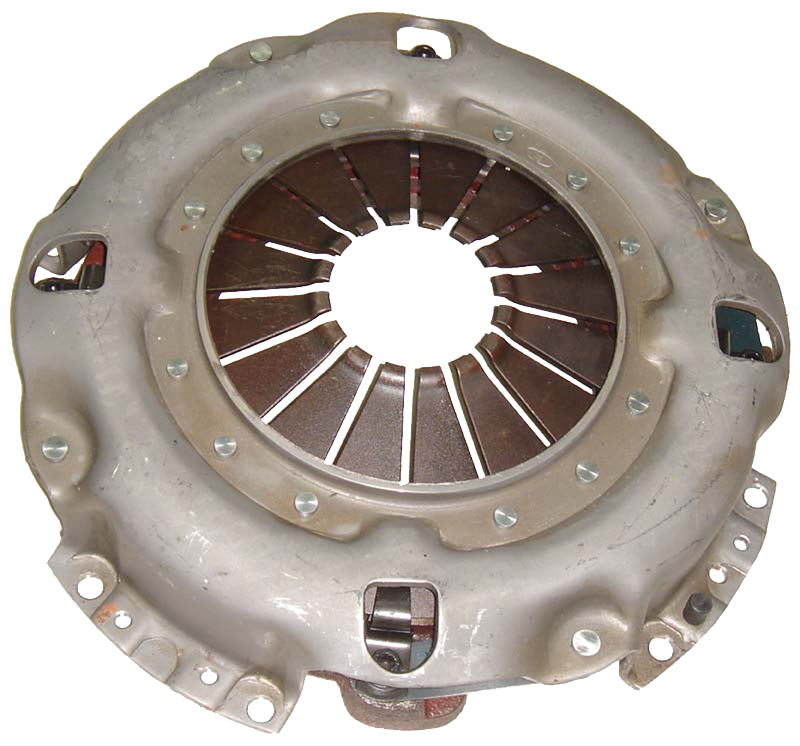

Pressure Plate Assembly Part #: FE3563 Reference #: 82001664 Reference #: FE3564 Type - Diaphragm Plate Size - 13" Levers - Diaphragm Springs - Diaphragm Stage -Single Models: 5640, 6410, 6640, 6810 | ||||
 |

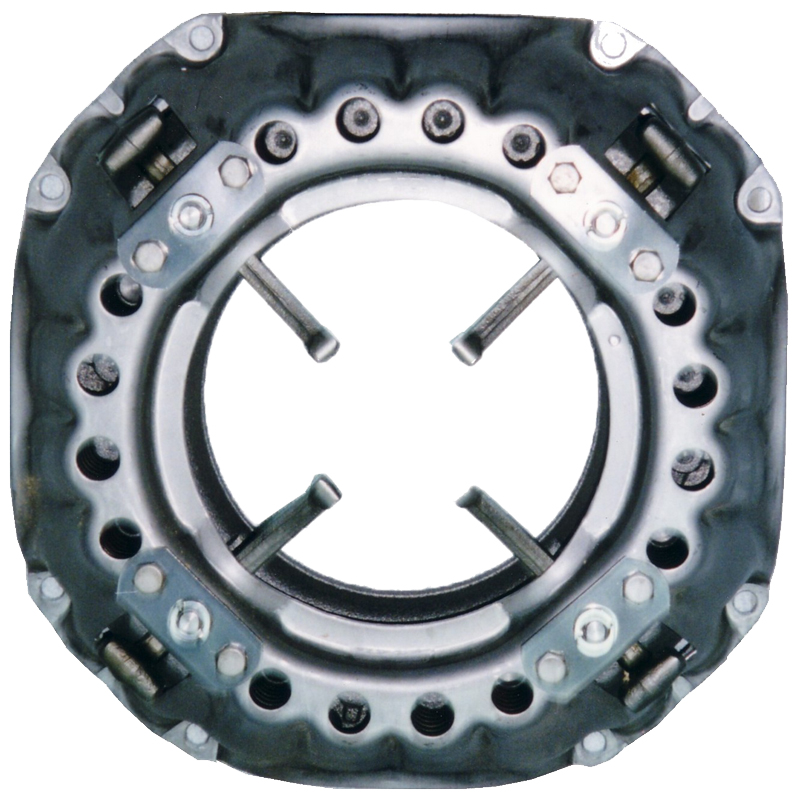

Pressure Plate Assembly Part #: FD863BA Reference #: CA1005L Reference #: D8NN7563BA Type - Lever Plate Size - 13" Levers - 4 Springs - 16 Flywheel Step - Flat Stage -Single Models: TW5, TW10 | ||||
 |
Pressure Plate Assembly Part #: FC563AC Reference #: C5NN7563AC Reference #: CA52733 Type - Lever Plate Size - 13" Levers - 4 Springs - 12 Hub/Spline - 1-7/8" x 29 Flywheel Step - Flat Stage -Single Includes Release Bearing Plate Models: 250C, 260C, 335, 340, 345, 420, 445, 515, 532, 535, 540, 545, 550, 555, 655, 2810, 2910, 3200, 3230, 3430, 3500, 3550, 3630, 3910, 3930, 4130, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030 | ||||
 |
Pressure Plate Assembly Part #: FD863AB Reference #: D8NN-7563AB Type - Lever Plate Size - 13" Levers - 4 Springs - 16 Flywheel Step - Flat Stage -Single Shims Not Included. Models: Major, Super Major, 5000, 5100, 5110, 5190, 5200, 5340, 5600, 5610, 5610S, 5700, 5900, 6410, 6600, 6610, 6810, 7000, 7100, 7600 | ||||
 |
Part #: F1815816 KIT (.060) SHIM KIT FOR FD863AB | ||||
 |
Part #: FD863AB REPAIR KIT REPAIR KIT FOR FD863AB | ||||
 |
Part #: PL1572 Reference #: E1ADDN7566B 13" CASTING PLATE (HT250 STEEL) | ||||
 |
Disc Part #: FD150C Reference #: 281216 Reference #: 281216-W Type - Spring Ceramic Button OD - 13" Hub Size - 1-3/4" Spline - 10 Models: TW5, TW10, 5640, 6410, 6640, 6810 | ||||
 |
Disc Part #: FD150C-UL Reference #: 281216-UL Type - Spring Unlined Disc OD - 13" Hub Size - 1-3/4" Spline - 10 VT Series Button Models: TW5, TW10, 5640, 6410, 6640, 6810 | ||||
 |
Disc Part #: FE350BA/365 Type - Spring Woven OD - 13" Hub Size - 1" Spline - 10 Models: 250C, 260C, 335, 340, 345, 420, 445, 515, 532, 535, 540, 545, 550, 555, 655, 2810, 2910, 3200, 3230, 3400, 3430, 3500, 3550, 3630, 3910, 4130, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030 | ||||
 |
Disc Part #: FE350BA-R Reference #: 281211-R Reference #: 333 0088 10 Reference #: E3NN7550BA Type - Rigid Woven OD - 13" Hub Size - 1" Spline - 10 Models: 250C, 260C, 335, 340, 345, 420, 445, 515, 532, 535, 540, 545, 550, 555, 655, 2810, 2910, 3200, 3230, 3400, 3430, 3500, 3550, 3630, 3910, 3930, 4130, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030 | ||||
 |
Disc Part #: FE350BA HD6 Reference #: 281211-CB Type - Rigid Ceramic Button OD - 13" Hub Size - 1" Spline - 10 VTL Series Button Models: 250C, 260C, 335, 340, 345, 420, 445, 515, 532, 535, 540, 545, 550, 555, 655, 2810, 2910, 3200, 3230, 3400, 3430, 3500, 3550, 3630, 3910, 3930, 4130, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030 | ||||
 |
Disc Part #: FE350BA-UL Type - Spring Unlined OD - 13" Hub Size - 1" Spline - 10 Models: 250C, 260C, 335, 340, 345, 420, 445, 515, 532, 535, 540, 545, 550, 555, 655, 2810, 2910, 3200, 3230, 3400, 3430, 3500, 3550, 3630, 3910, 3930, 4130, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030 | ||||
 |
Disc Part #: FD251A/380 Reference #: 281212/380 Type - Spring Woven OD - 13" Hub Size - 1-5/8" Spline - 25 Thickness - .380 Non Dual Power Models: 5000, 5100, 5190, 5200, 5340, 5600, 5610S, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |
Disc Part #: FD251A-UL Type - Spring Unlined OD - 13" Hub Size - 1-5/8" Spline - 25 Non Dual Power Models: 5000, 5100, 5190, 5200, 5340, 5600, 5610S, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7000, 7100, 7200, 7600 | ||||
 |
Disc Part #: FD250A/380 Type - Rigid Woven OD - 13" Hub Size - 1-5/8" Spline - 25 Non Dual Power Models: 5000, 5100, 5190, 5200, 5340, 5600, 5610S, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |
Disc Part #: FD250A-UL Type - Rigid Unlined OD - 13" Hub Size - 1-5/8" Spline - 25 Non Dual Power Models: 5000, 5100, 5190, 5200, 5340, 5600, 5610S, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |

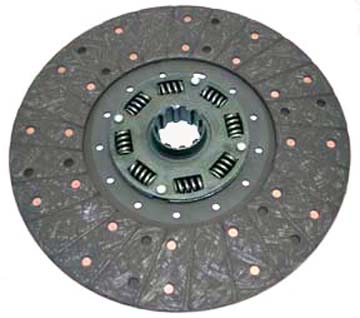

Disc Part #: FD950AB/380 Reference #: 281223/380 Type - Spring Woven OD - 13" Hub Size - 1-3/4" Spline - 10 Dual Power Models: 5000, 5100, 5110, 5190, 5200, 5340, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6640, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |
Disc Part #: FD950AB-UL Type - Spring Unlined OD - 13" Hub Size - 1-3/4" Spline - 10 Dual Power Models: 5000, 5100, 5110, 5190, 5200, 5340, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6640, 6700, 6710, 6810, 7000, 7100, 7200, 7410 | ||||
 |

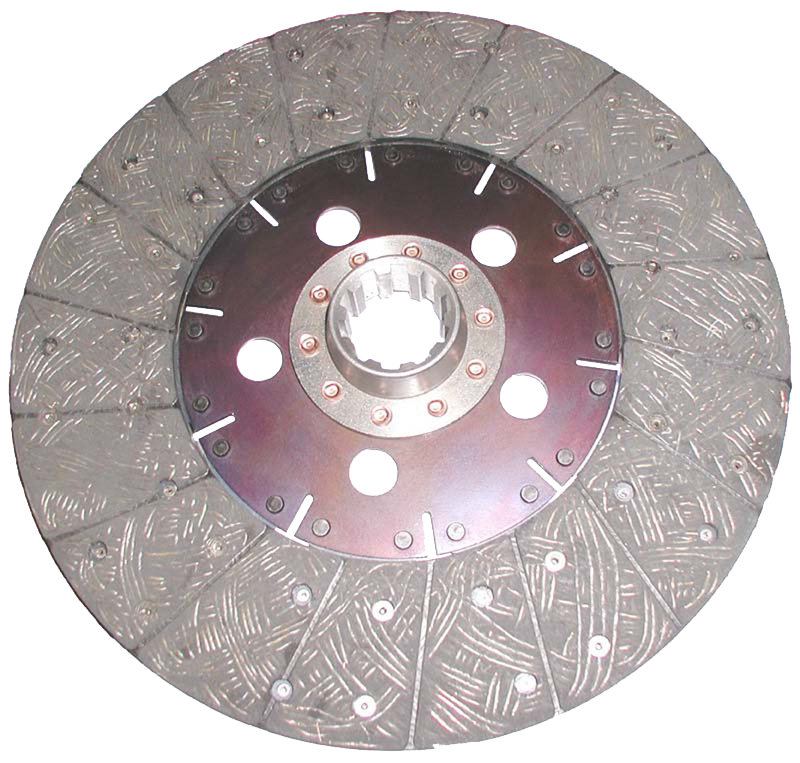

Disc Part #: FD951AB/380 Type - Rigid Woven OD - 13" Hub Size - 1-3/4" Spline - 10 Dual Power Models: 5000, 5100, 5110, 5190, 5200, 5340, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6640, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |
Disc Part #: FD951AB-UL Type - Rigid Unlined OD - 13" Hub Size - 1-3/4" Spline - 10 Dual Power Models: 5000, 5100, 5110, 5190, 5200, 5340, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6640, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600 | ||||
 |
Release Bearing Part #: 510 0019 10 Reference #: 3182 001 002 Reference #: 471 3444 0 Reference #: 8186 4436 Reference #: FONN-7580 AA W/CARRIER Hydraulic Type, Includes 2 Port Slave Cylinder w/Sound Guard Cab Models: 5640, 6410, 6640, 6810 | ||||
 |
Release Bearing Part #: N1174 Reference #: 2505-T Reference #: 832505 Reference #: A2287-31 ID - 2.500" OD - 4.154" Thickness - .865" Aetna: 2505T Models: 230A, 231, 233, 234, 333, 334, 335, 340, 420, 445, 515, 530A, 531, 532, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3550, 3910, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Pilot Bearing Part #: 6203-2RS ID - .6693" OD - 1.5748" Thickness - 1.5748" Models: Ford Major, Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Alignment Tool Part #: AG 03 Large Spline - 1 7/8" - 29T Small Spline - 1" - 10T Pilot Diameter - 0.670 Models: 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 530A, 531, 532, 535, 540, 545, 550, 555, 655, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 |
||||
